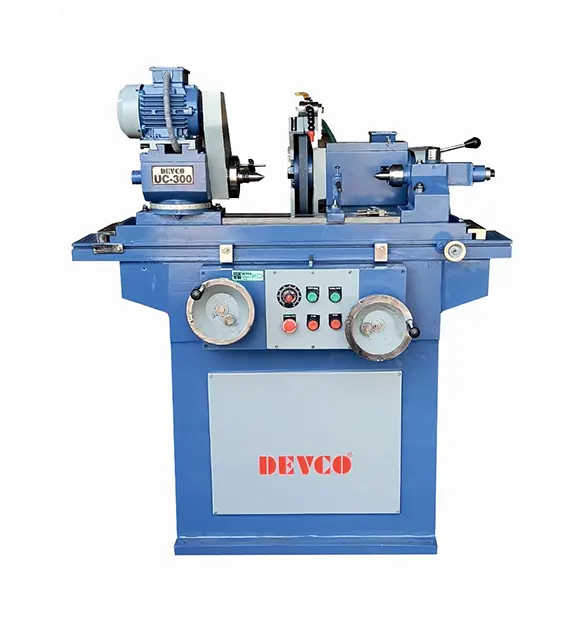

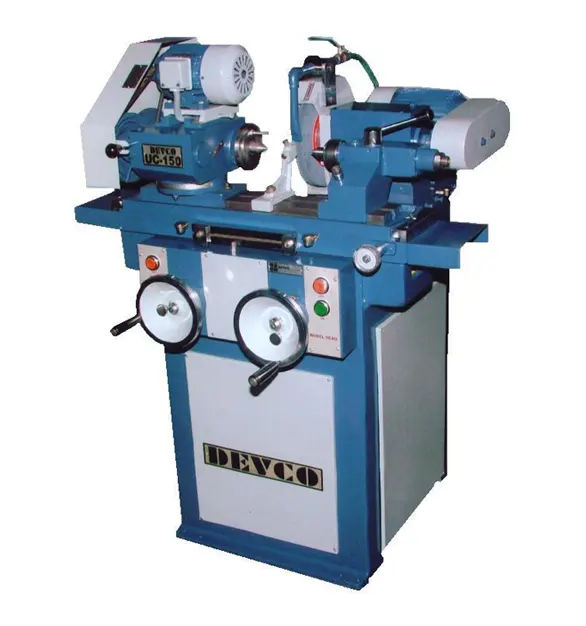

CYLINDRICAL GRINDING MACHINE

Technical Data

SPECIFICATIONUINTMODEL-UC
UC-150UC-300UC-450UC-500UC-600UC-800UC-1000UC-1250UC-1500
CAPACITYDistance between centermm160310510510610810101012601510
Hight of Centermm102102130151
TABLESwivelling Angledeg.±9°+10°
-4°		.+9°
-3°		.+7°
-3°		.+7°
-5°		.+7°
-4°		.+6°
-4°		.+5°
-3°		.+5°
-3°
● Table Speed Mech. 4 stepmm/min-140-260-370-700
Electric Motor Required, 3 phaseHP/pm0.5/OR 0.37 KW./1440
● Hy Speed Infinitely variablemet/min--0.1 to 2.5
Hy Power Pack Electric Motor, 3 phaseHP/rpm--1/ or 0.75 KW/1441
WHEEL HEADGrinding wheel size DxWX8mm250x25x76.2300x25x76.2300x40x127350 x 40 x 127
Grinding wheel speedrpm2300190019001700
In feed of hand wheel per Divisionmm0.010.010.010.01
Electric Motor Required, 3 PhaseHP/rpm1.5/14402/14403/14403/1440
● Rapid approachmm---40 mm stock (FxR)
WORK HEADSpindle Speed (3 Rang)rpm90-210-36090-180-36090-180-36065-140-205-300
Spindle in ToperM.T3334
Electric Motor 3 PhaseHP/rpm0.5/14400.5/14400.5/14401/1440
TAIL STOCKTopper in quileM.T3334
Max quale Stockmm25252540
● INTERNAL GRINDING-ATTECHMENTSpindle Sizemm200x60200x60250x60250 x 60
Spindle Speedrpm12000120001600016000
Electric motor requied 3 phaseHP/rpm0.5/28000.5/28001/28001/2800
COOLANT TANKCoolant tankliter35355050
Coolant pump 3 phaseHP0.150.150.150.15
TOTAL WEIGHTMachine approxkg6009001400170021002500300035004000
Note :- speecification and design are subject change without notice.

Extra Accessories

Mechanical Self Feeding Attachment|Internal Grinding Attachment|Three Point Steady Rest|Two Point Steady Rest|True Chuck Flange|Additional Wheel Flange|Wheel Balancing Arbor|Wheel Balancing Stand|Radius Dressing Attachment|Rapid Approach|Magnetic Separator|Hydraulic Feeding Attachment|Duel Timer|VFD|DRO Unit|Micro Feed Attachment|Automatic Lubrication Oil Pump|Turcite Coated Slide|Machine Lamp|Vibrating Pad

Standard Accessories

  • Wheel Head Motor & Work Head Motor
  • Universal Wheel Head Slide
  • Grinding Wheel with Flange
  • Grinding Wheel Balancing Blocks
  • Dead Centers 2 Nos.
  • Wheel Head Motor & Work Head Motor
  • Universal Wheel Head Slide
  • Grinding Wheel with Flange
  • Grinding Wheel Balancing Blocks
  • Dead Centers 2 Nos.
  • Wheel Head Motor & Work Head Motor
  • Universal Wheel Head Slide
  • Grinding Wheel with Flange
  • Grinding Wheel Balancing Blocks
  • Dead Centers 2 Nos.
images

The company assures its customers of consistence in quality as well as value for money. The company offers its quality products at very competitive prices. The company invites qll types of enquiries for its product range and also welcome any special requirements and suggestions.
